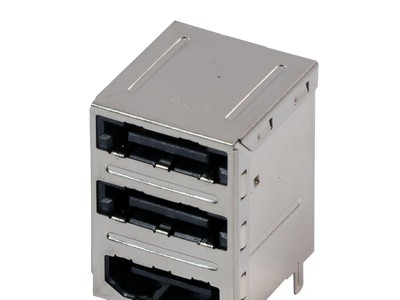

HDMI-A-001
产品说明:
Function:
Voltage rating: 40VAC
Current rating: 0.5A
Insertion force: 44.1N (4.5Kgf) Max.
Withdrawal force: 9.8N (1.0Kgf) Min.
39.2N (4.0Kgf) Max.
Durability: 10000 cycles
Contact resistance: 30 mΩ Max.
Insulation Resistance: 100 MΩ min. (unmated)
10 MΩ min. (mated)
Dielectric Withstanding Voltage: 500VAC
