医疗和ITE安全认证
2 MOPP 隔离保护
符合医疗设备达BF(∧)级别
接触电流 ≤ 50μA
能效 DOE efficiency 六级
CoC V5 Tier 2(2016)
待机功耗≤0.075W
9V至54V输出, 最高48W
满足4KV浪涌抗扰度水平
工作海拨高度3048米

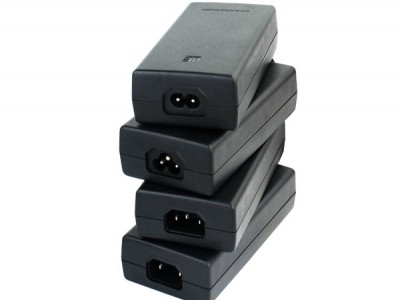

输入有4种AC插座形式
涵盖短路保护、过压保护、过载保护;
电气规格
输入电压:90~264VAC
输入电流:1.1A
待机功率:0.075W
输出电压范围:±5%
环境参数
工作温度: -10~40℃
储存温度:- 20~70℃
工作湿度:10~90%
储存湿度:5~90%
安规认证
安全机构/标志 医疗 通信
CB IEC60601-1 IEC60950-1
UL ANSI/AAMI ES60601-1 UL60950-1,UL62368
CAN/CSA C22.2 NO.60601-1
TUV EN60601-1 EN60950-1
CCC GB4943.1
机械规格
122(长)*51(宽)*31.5(高)mm
应用场所
适用于医疗、信息通讯设备类电源适配器
输出数据 | ||||||||
型号 |
电压 |
电流 |
纹波 |
电压公差 |
线性与负数调整率 |
|
平均效率 |
启动延迟时间 |
UES48-XXXYYYSPAZ |
9.1-10.0 |
0.01-4.50 |
120 |
±5% |
|
Y Y |
88.70% |
≤3s |
UES48-XXXYYYSPAZ |
10.1-11.0 |
0.01-4.36 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
11.1-12.0 |
0.01-4.00 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
12.1-13.0 |
0.01-3.69 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
13.1-14.0 |
0.01-3.42 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
14.1-15.0 |
0.01-3.20 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
15.1-16.0 |
0.01-3.00 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
16.1-17.0 |
0.01-2.82 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
17.1-18.0 |
0.01-2.66 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
18.1-19.0 |
0.01-2.52 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
19.1-20.0 |
0.01-2.40 |
120 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
20.1-21.0 |
0.01-2.28 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
21.1-22.0 |
0.01-2.18 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
22.1-23.0 |
0.01-2.08 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
23.1-24.0 |
0.01-2.00 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
24.1-25.0 |
0.01-1.92 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
25.1-26.0 |
0.01-1.84 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
26.1-27.0 |
0.01-1.77 |
150 |
±5% |
线性调整率:±1% |
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
27.1-28.0 |
0.01-1.71 |
150 |
±5% |
负载调整率:±5% |
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
28.1-29.0 |
0.01-1.65 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
29.1-30.0 |
0.01-1.60 |
150 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
30.1-31.0 |
0.01-1.54 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
31.1-32.0 |
0.01-1.50 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
32.1-33.0 |
0.01-1.45 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
33.1-34.0 |
0.01-1.41 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
34.1-35.0 |
0.01-1.37 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
35.1-36.0 |
0.01-1.33 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
36.1-37.0 |
0.01-1.29 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
37.1-38.0 |
0.01-1.26 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
38.1-39.0 |
0.01-1.23 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
39.1-40.0 |
0.01-1.20 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
40.1-41.0 |
0.01-1.17 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
41.1-42.0 |
0.01-1.14 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
42.1-43.0 |
0.01-1.11 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
43.1-44.0 |
0.01-1.09 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
44.1-45.0 |
0.01-1.06 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
45.1-46.0 |
0.01-1.04 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
46.1-47.0 |
0.01-1.02 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
47.1-48.0 |
0.01-1.00 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
48.1-49.0 |
0.01-0.97 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
49.1-50.0 |
0.01-0.96 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
50.1-51.0 |
0.01-0.94 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
51.1-52.0 |
0.01-0.92 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
52.1-53.0 |
0.01-0.90 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
UES48-XXXYYYSPAZ |
53.1-54.0 |
0.01-0.88 |
300 |
±5% |
|
Y Y |
89.00% |
≤3s |
