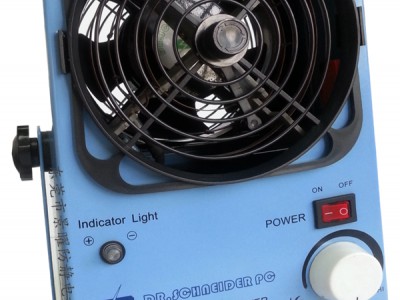

SL-001N Specification(技术参数)
Input Voltage(输入电压) | 220VAC(或or)110VAC |
Power Consumption/Heater on(消耗功率/加热风) | 50VA/ 250VA |
Operating Temperature(操作温度) |
-10℃ ~ +45℃ |
Air Volume Range(出风量范围) |
50~110CFM |
Weight(重量) | 3.1 kg |
Size(外型尺寸) | 200(L)X 125(W)X 260(H)(mm) |
Limited Power (发热功率) | 200W |
SL-001N Static Elimination Typical Value(除静电典型值)
Testing Conditions(测试条件) |
Testing Voltage(测试电压):1000V~100V,-1000V~-100V |
|
Temperature(环境温度):22℃±5℃ RH(相对湿度):≤60% |
||
Distance(距离): 300mm |
||
Hot Air Function(是否加装热风功能) |
Yes(是) |
No(否) |
Decay Time(中和时间) |
≤1.6s |
≤1.3s |
Offset Voltage(残余电压) |
-15V ~ +15V |
-10V ~ +10V |
特点:
1.SL-001N是SL-001基础上的改进型.
2.前后网罩可拆御,方便清洁.
3.网罩不慎脱落具有自动断电功能.
4.离子风力更强劲,作用范围宽广.
