产品的特性:
额还是电压:30V
额还是温度:80℃
特性打扰抗:100Ω±10(Differential)
符合VW-1垂涎直到燃烧测试
功能说明:
LVDS技术用於单线性传动器比接收器的零部件、也用於复合谈得来通讯芯片组合.
http://www.greatchinacom.com/cn_asp/productshow.asp?id=804
规格参数
|

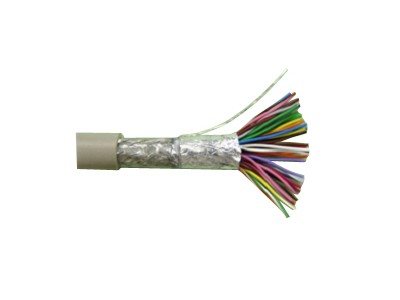

●Structure:
Tinned Stranded Copper Conductor 30AWG.
Twisted Pair Insulation:FPE
Single Insulation:HD-PE
Tissue Paper Shield
Aluminum Mylar Shield
Tinned Copper wire Shield up to 90% Coverage.
Polyvinyl Chloride(PVC) Jacket
Spec NO: |
Conductor |
No.of Pair(core) |
Insulation Diameter |
Insulation |
Jacket Diameter |
AWG |
No./MM |
MM |
MM |
6737J |
30 |
7/0.1 |
10PR |
0.55 |
FOAM-PE |
5.5 |
3D2GOUS |
30 |
7/0.1 |
10PR+5C |
0.55 |
FOAM-PE |
6.0 |
30 |
7/0.1 |
0.55 |
HD-PE |
3D2GQR1 |
30 |
7/0.1 |
10PR+7C |
0.55 |
FOAM-PE |
6.0 |
30 |
7/0.1 |
0.55 |
HD-PE |
3D2GBY3 |
30 |
7/0.1 |
10PR+10C |
0.55 |
FOAM-PE |
6.3 |
30 |
7/0.1 |
0.55 |
HD-PE |
6737JZW |
30 |
7/0.1 |
15PR |
0.55 |
FOAM-PE |
6.0 |
|
●Physical Characters:
Voltage rating:30V
Temperature rating:80℃
Flame test of cable:VW-1 |
●Transmission Characters:
1.Differential Impedance:100±10Ω |
●Remarks:color code:
1.BROWN*BROWN/BLACK
2.RED*RED/BLACK
3.ORANGE*ORANGR/BLACK
4.YELLOW*YELLOW/BLACK
5.GREEN*GREEN/BLACK
6.BLUE*BLUE/BLACK
7.VIOLET*VIOLET/BLACK
8.WHITE*WHITE/BLACK
9.PINK*PINK/BLACK
10.BROWN/WHITE*RED/WHITE
11.ORANGE/WHITE*YELLOW/RED
12.GREEN/WHITE*BLUE/WHITE
13.VIOLET/WHITE*LIGHT-GRAY/WHITE
14.RED/BROWN*YELLOW/BROWN
15.ORANGE/BROWN*GREEN/RED |
|
